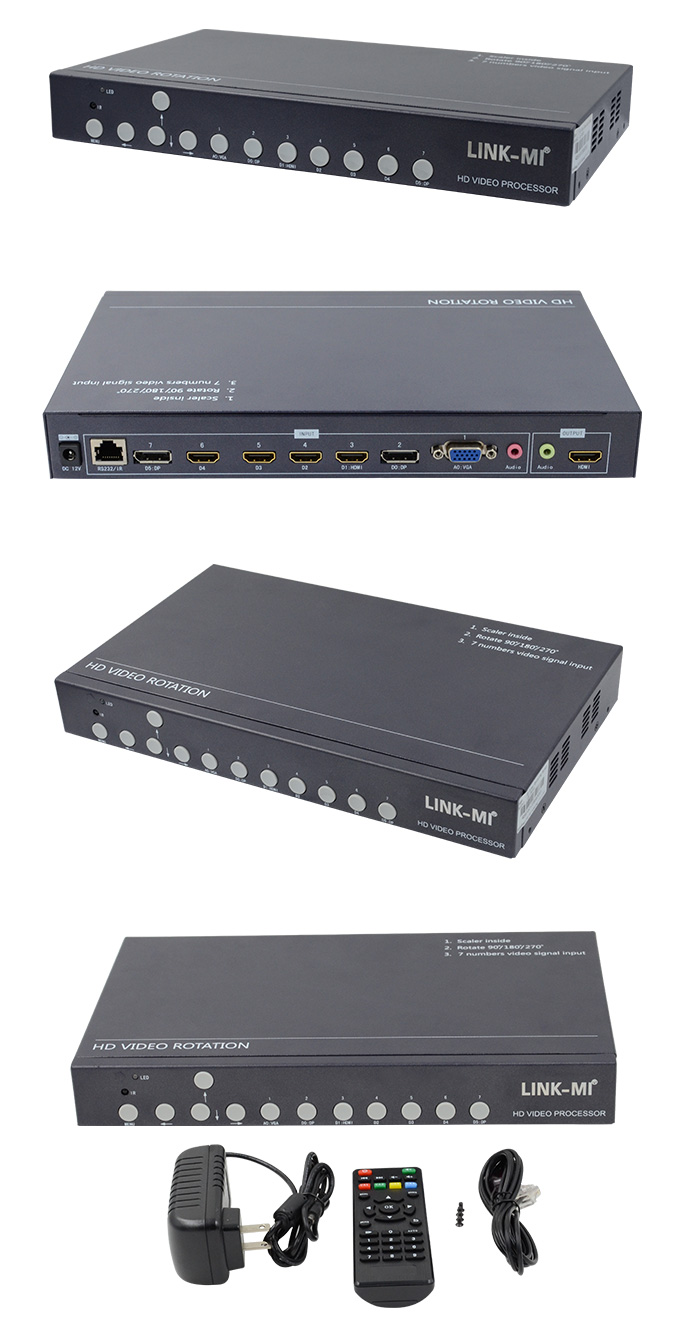

| LINK-MI LM-TN702 Mobile Phone SyncScreen Rotator |
| |
Introduction:

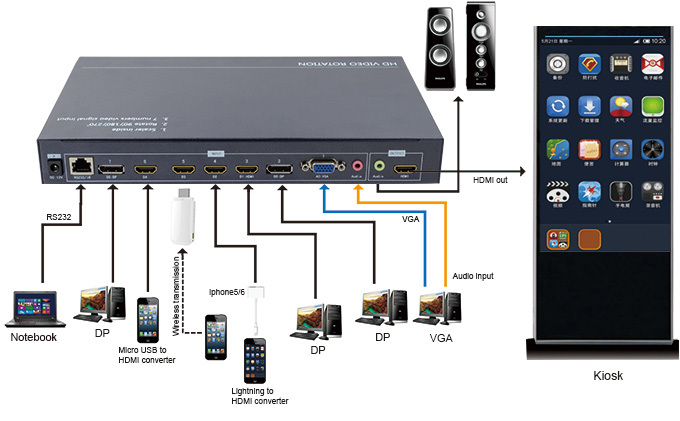

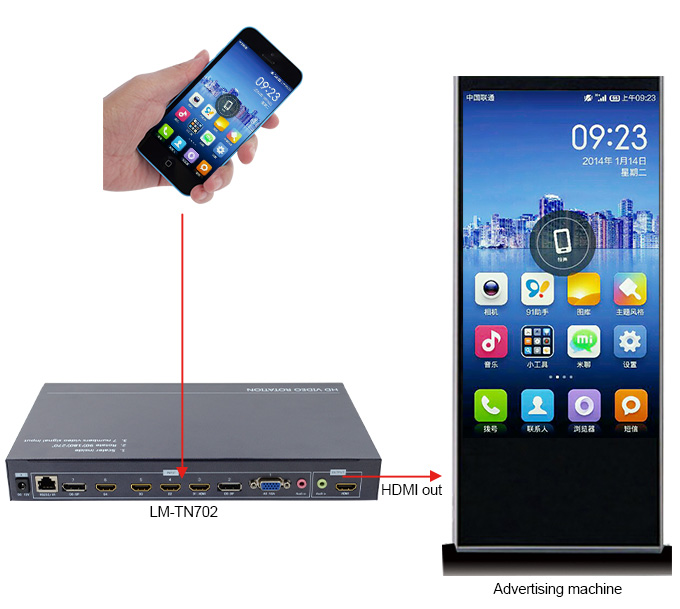

1. Input Signals: 1xVGA, 2xDP(DisplayPort), 4xHDMI and 1x Audio(bound with VGA Signal).2. Video Format: supports 1920x1200@60Hz and downward compatibility.3. Mobile Phone Input Function4. Output Signal: 1x HDMI and 1x Stereo Audio output5. Switch Function: Select one of different input signal source and switch to HDMI display 6. Upscaling Function: Upscale to 1280x720@60Hz or 1920x1080@60Hz 7. Image Rotation Function: Supports image 90 degree, 180 degree and 270 degree rotation8. Mobile Phone and Vertical Advertisement Machine Display Synchronously. |
|
|
| |
|
|
|

Specification
|

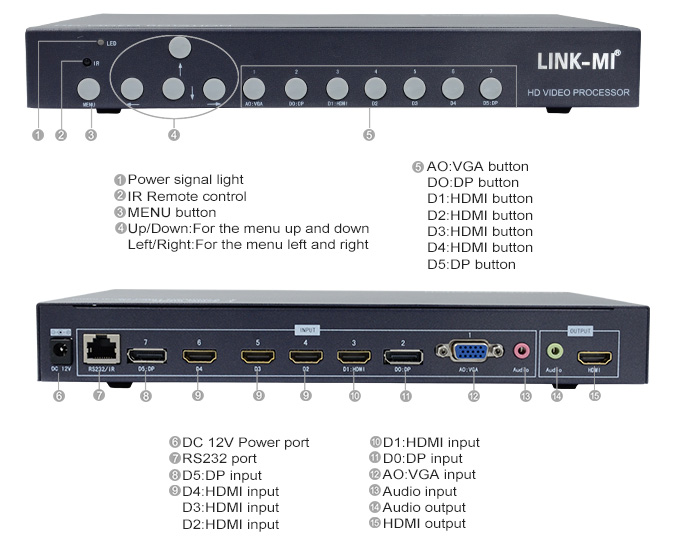

Input Signal |
|
1x VGA |
HD15 port, supports 640x480@60Hz to 1920x1200@60Hz |
|
2x DP |
DisplayPort 1.1 |
|
4x HDMI |
HDMI 1.4(HDCP 1.3), Compatible with smart phone signal |
|
1x Audio |
3.5mm earphone port, supports L/R stereo audio, bound with VGA Video signal |
|
Output Signal |
|
1x HDMI |
HDMI 2.0(HDCP 1.3), 3840x2160/60Hz, 1920x1080/60Hz, 1280x720/60Hz optional |
|
1x Audio |
3.5mm earphone port, supports L/R Stereo Audio |
|
Others |
|
Control Mode |
Remote Controller, Button, RS232 Serial port |
|
Power Supply |
DC 12V |
|
Power Consumption |
10w |
|
Dimension ( LxWxH) |
280x170x35mm |
|
Net Weight |
1.1kg | |
 |
|
|
|
